Morgue Transportation Trolley
Body Lifting Trolley
HICO Electro Hydraulic Body Lifting Trolley is for transferring of cadavers to and from HICO Mortuary Refrigerators. The fingertip control Electro Hydraulic Body Lifting Trolley means that the entire operation can be handled by an attendant in an easy efficient and faster manner. A built in digital weighing scale is provided for record purpose as an optional feature.
| Product | |||
|---|---|---|---|
| Model | MLT-1 | EBT-2 | EBT-3 |
 |
 |
|
|
| Constructed Material | Heavy Gauge 304 Stainless Steel | Heavy Gauge 304 Stainless Steel | Heavy Gauge 304 Stainless Steel |
| Powered Lifting & Lowering | Manual Hydraulic by foot pump | Electro hydraulic | Electro hydraulic |
| Battery | - | Battery charger & indicator High quality seal lead acid battery |
Battery charger & indicator High quality seal lead acid battery |
| Rubber Bumper | Rubber bumper for protection of the facilities walls | Rubber bumper for protection of the facilities walls | Rubber bumper for protection of the facilities walls |
| Tray Rollers | Stainless steel 304 tray rollers for easy transfer of body tray | Stainless steel 304 tray rollers for easy transfer of body tray | Stainless steel 304 tray rollers for easy transfer of body tray |
| Front Castor | 2 nos x 5" with selectable swivel or directional control | 2 nos x 5" with selectable swivel or directional control | 2 nos x 5" with selectable swivel or directional control |
| Rear Castor | 2 nos x 5" with total lock control | 2 nos x 5" with total lock control | 2 nos x 5" with total lock control |
| Dimension (LxWxH)mm | 2300 x 750 x 355-1575 | 2300 x 750 x 355-1575 | 2300 x 750 x 355-1575 |
| Weighing Scale | - | - | Build in weight scale set with large digital display |

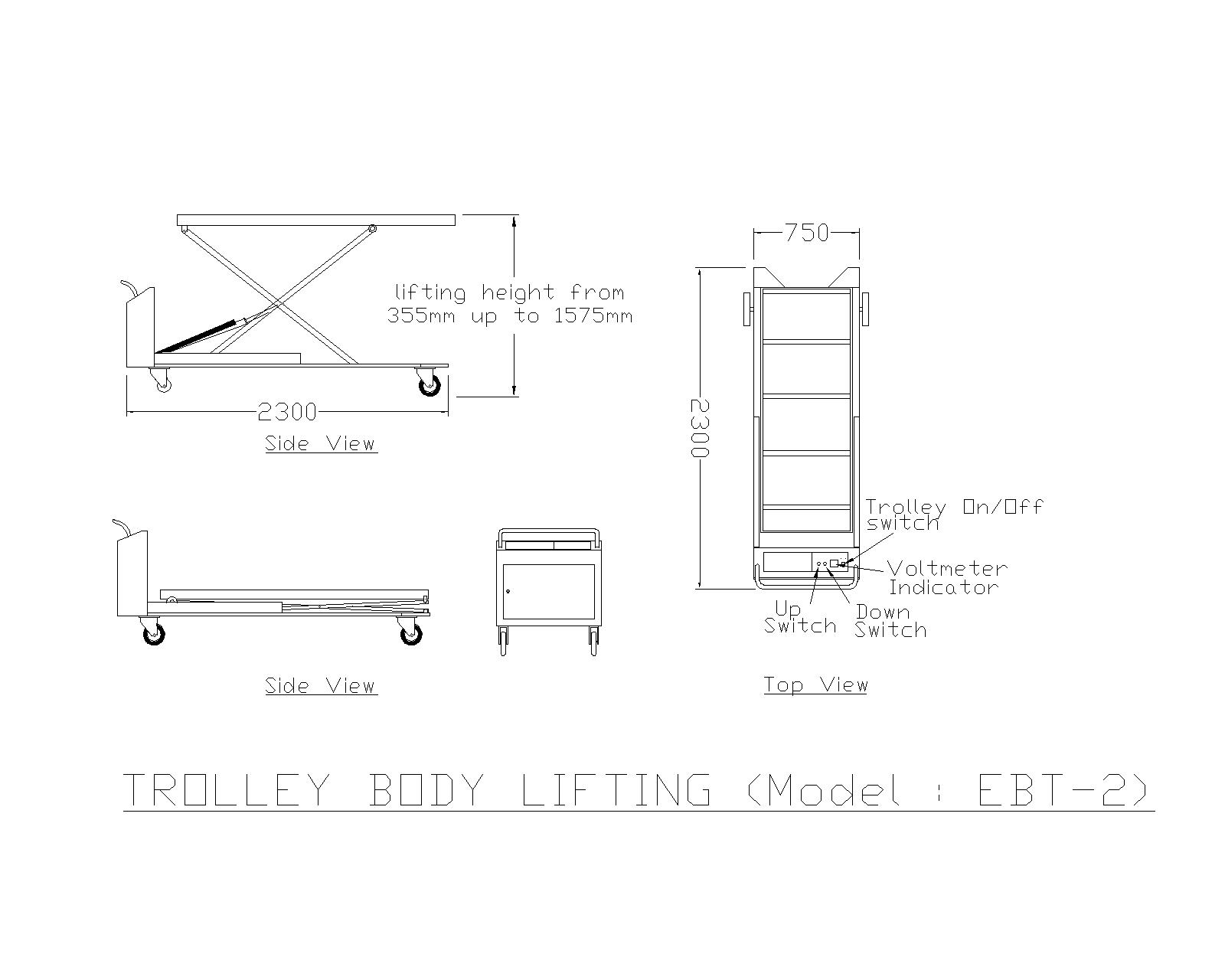

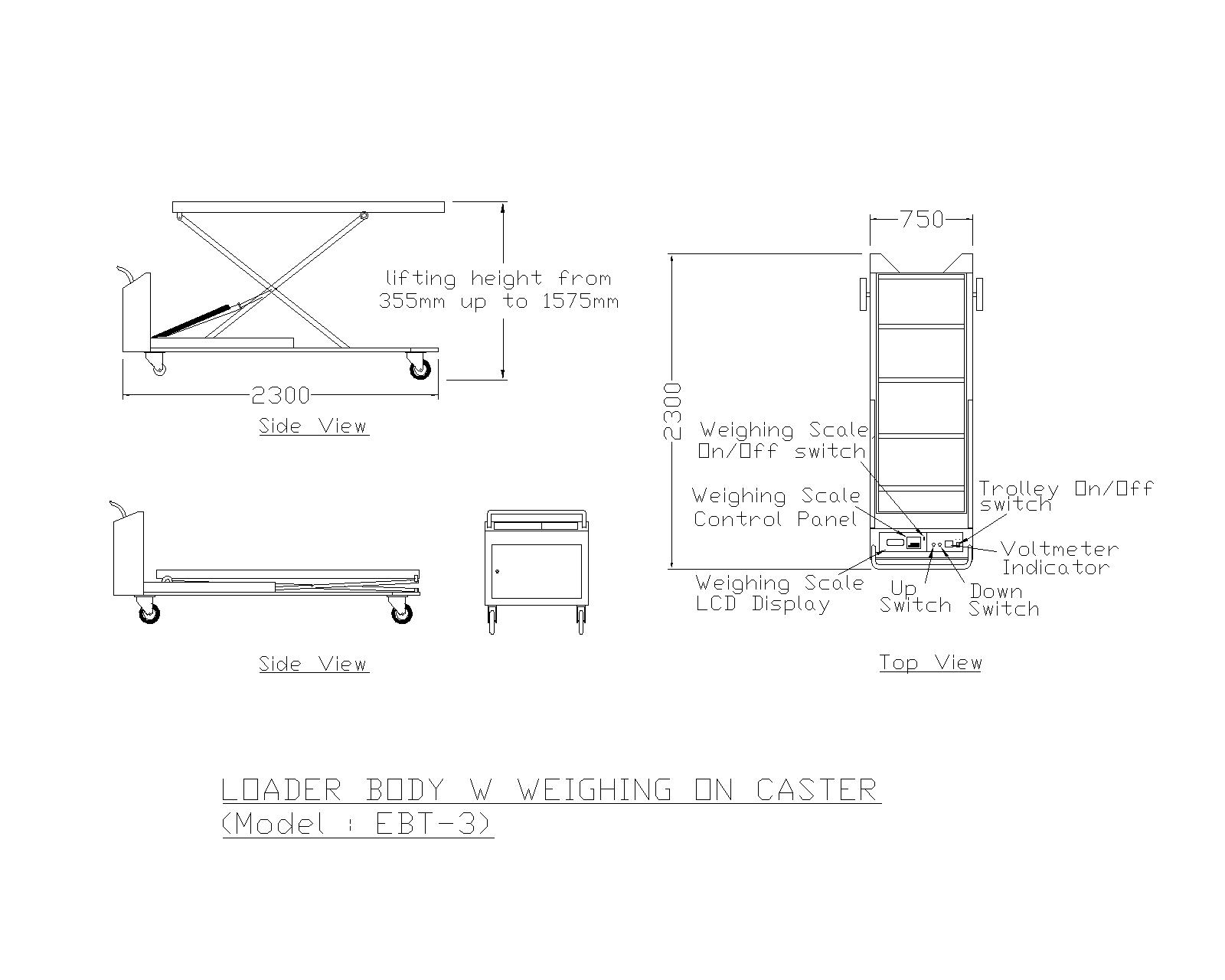

| Drawing |  |
 |
 |
